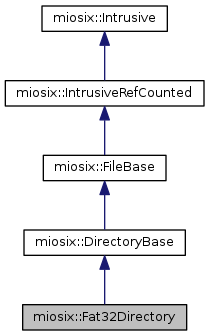

Inheritance diagram for miosix::Fat32Directory:

Collaboration diagram for miosix::Fat32Directory:

Public Member Functions
	Fat32Directory (intrusive_ref_ptr< FilesystemBase > parent, FastMutex &mutex, int currentInode, int parentInode)

DIR_ *	directory ()

virtual int	getdents (void *dp, int len)

virtual	~Fat32Directory ()

Public Member Functions inherited from miosix::DirectoryBase
	DirectoryBase (intrusive_ref_ptr< FilesystemBase > parent)

virtual ssize_t	write (const void *data, size_t len)

virtual ssize_t	read (void *data, size_t len)

virtual off_t	lseek (off_t pos, int whence)

virtual int	fstat (struct stat *pstat) const

Public Member Functions inherited from miosix::FileBase
	FileBase (intrusive_ref_ptr< FilesystemBase > parent)

virtual int	isatty () const

virtual int	fcntl (int cmd, int opt)

virtual int	ioctl (int cmd, void *arg)

const intrusive_ref_ptr < FilesystemBase >	getParent () const

virtual	~FileBase ()

Additional Inherited Members
Protected Member Functions inherited from miosix::IntrusiveRefCounted
	IntrusiveRefCounted ()

	IntrusiveRefCounted (const IntrusiveRefCounted &)

IntrusiveRefCounted &	operator= (const IntrusiveRefCounted &)

Static Protected Member Functions inherited from miosix::DirectoryBase
static int	addEntry (char *pos, char end, int ino, char type, const StringPart &n)

static int	addDefaultEntries (char **pos, int thisIno, int upIno)

static int	addTerminatingEntry (char *pos, char end)

Static Protected Attributes inherited from miosix::DirectoryBase
static const int	direntHeaderSizeNoPadding =offsetof(struct dirent,d_name)

static const int	direntHeaderSize =(direntHeaderSizeNoPadding+3+3)/4*4

static const int	minimumBufferSize =3*direntHeaderSize
	Minimum buffer accepted by getdents, two for . and .., plus terminating.

Detailed Description

Directory class for Fat32Fs

Constructor & Destructor Documentation

miosix::Fat32Directory::Fat32Directory	(	intrusive_ref_ptr< FilesystemBase >	parent,
		FastMutex &	mutex,
		int	currentInode,
		int	parentInode
	)

inline

Parameters

parent	parent filesystem
mutex	mutex to lock when accessing the fiesystem
currentInode	inode value for '.' entry
parentInode	inode value for '..' entry

miosix::Fat32Directory::~Fat32Directory ( )

virtual

Destructor

DIR_* miosix::Fat32Directory::directory ( )

inline

int miosix::Fat32Directory::getdents	(	void *	dp,
		int	len
	)

virtual

Also directories can be opened as files. In this case, this system call allows to retrieve directory entries.

Parameters

dp	pointer to a memory buffer where one or more struct dirent will be placed. dp must be four words aligned.
len	memory buffer size.

Returns: the number of bytes read on success, or a negative number on failure.

Reimplemented from miosix::FileBase.

The documentation for this class was generated from the following file:
